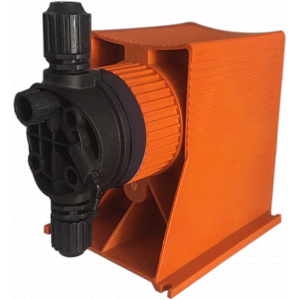

Electronic Dosing Pump

It is a positive displacement diaphragm metering pump operating at 230V, 50Hz supply. It is base mountable.Solenoid pushes the diaphragm which in turn pushes the liquid into the system. Solenoid is actuated by a solid state electronic circuit. It has controls for the desire accuracy of  the dosing.

Diaphragm:

Superior diaphragm is designed to ensure to long life even under the most demanding applications. We are using imported quality Solid PTFE diaphragm.

Electronic Circuit:

State of the art electronic circuit (protectively coated with epoxy) is virtually unaffected by temperature,magnetic fields & other electric disturbances.

MOC:

       • PP, PVDF, PTFE & SS316, Alloy20

Salient features:

Maintenance free
Easy to operate
Economical
World class next generation Dosing Pumps
Inbuilt Air Relief Valve
Solid PTFE Diaphragm
Double NRV Check Valves
Less noise
Minimum SPM

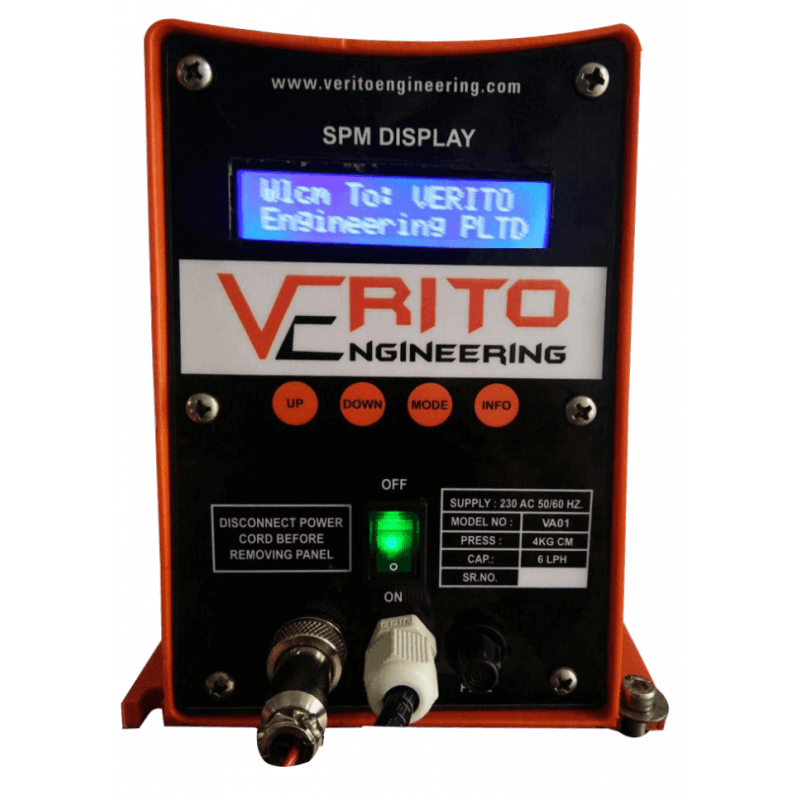

Optionally Digital display of SPM available

Solenoid:

High quality, hot rated solenoid is designed to dissipate heat. Capacities & pressure do not derate even over extended use.

Technical specification:

1. Power Supply 230v AC, 50Hz
2. Power consumption at max. speed 40 Watt
3. Fuse 500mA / 230v Ac
4. Pump stroke per minute {adjustable} 120 Max
5. Negative Suction 1 Mtr
6. environment temperature 40'C Max
7. Capacity Max 50 Lph
8. Pressure Minimum 13 Kg

9. Pressure Max 17 Kg
